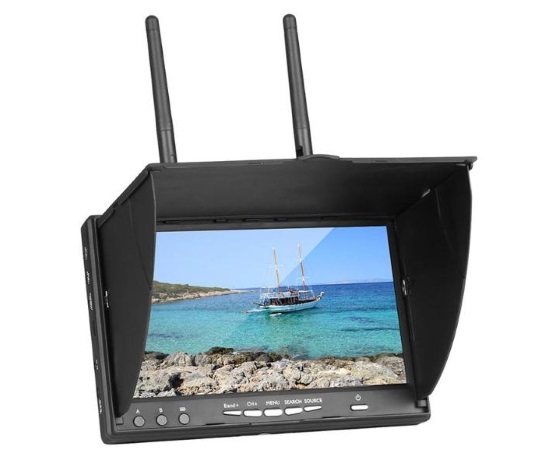

LT5802S 7 Inch FPV Monitor 5.8GHz 40CH FPV receiver

7" FPV monitor met ingebouwde batterij en 40 kanalen 5.8Ghz diversity receiver

Specifications:

• Built-in 5.8 GHz dual diversity receiver
• Built-in 2 CH 5.8 GHz AV output and 1 ch AV input
• Built in high performance Li-POLYMER batteries: 2000 MAH / 7.4 V
• Screen size: 7 inches
• Screen type: TFT LCD screen / long life, LED backlight
• Resolution: 800 * 480
• Brightness: 600 CD / m2
• Perspective: 140/120degree (horizontal / vertical)
• Working voltage: DC 7 ~ 16 V
• Power consumption: Max 650 mA @12V
• Battery charging current: 850 mA @12V (max)
• Working temperature: -10℃~ + 65℃
• Connector: RP-SMA (external needle)
• Antenna connector: RP-SMA (inner hole)
• Size: 175*117*30mm/6.88*4.6*1.18''

Packages:

• 1 x FPV Monitor
• 2 x Antennas
• 1 x Power Adapter + euro plug
• 1 x Video Cable
• 1 x Charging Connector Cable
• 1 x User Manual
