PICO-BOX Power Supply Module (20pin, 12V, 120W)
korte omschrijving
zeer compacte Voedings module voor mini PC's. Zet de 12volt van een power adapter om in al de door de computer benodigde spanningen.
Homepage
Niet beschikbaar
Beschikbaarheid
2 op voorraad en direct leverbaar
Aanbevelen

Voorraad:2

Komt voor in
  • Algemeen
  • Computers home

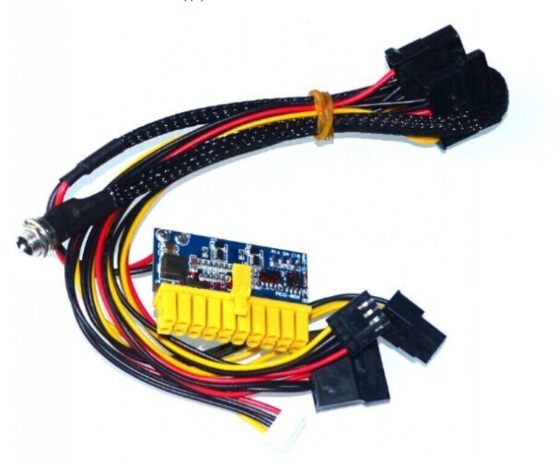

PICO-BOX Power Supply Module (20pin, 12V, 120W)

Description:

NOTE: This 20Pin DC-DC PSU can also be used for motherboard with 24Pin connector!

PICO-BOX is proud to announce Z2-ATX-20PIN-120W, world\'s tiniest single-board12V DC-DC ATX power supply unit (PSU).

Compact design, less cables. The Z2-ATX-20PIN is the smallest snap-in 12V ATX dc-dc power supply with only one PCB board. The PSU compatible with an entire range of mini-itx motherboards as well as regular boards. The Z2-ATX-20PIN provides a cool, silent 120 Watts of power for small PC designs using a single 12V power source.

Z2-ATX-20PIN packs an impressive amount of power relative with its very small footprint. Z2-ATX-20PINhas several key advantages over traditional power supplies:

  • Very small, can build unltra-compact PC enclosures and slim server enclosures.
  • Fits any motherboard equipped with a 20 or 24pin ATX connector.
  • 100% silent, fanless, no moving parts.
  • Operates at only 12V.
  • Highly efficient design, does not produce a lot of heat.
  • Ideal for low power Intel as well as AMD motherboards.
Small computer projects start with small power supplies. Z2-ATX-20PIN is a crucial key component that unleashes the ultimate power solution for general purpose computing platforms. Z2-ATX-20PIN is fully ATX compliant PSU, making it an excellent candidate for any silent, fanless and small 12V DC-DC ATX PC power supply project.

Reduce space. Eliminate 20 unnecessary wires by plugging in directly into the motherboard ATX connector. The Z2-ATX-20PIN 12V dc-dc ATX converter was designed from ground up to fit small form factor ATX boards, allowing enclosure designers to save space while not compromising power requirements.

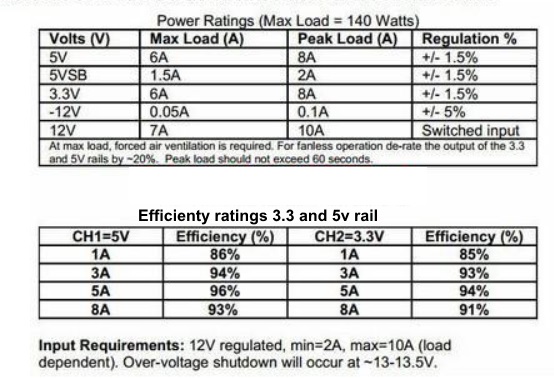

Cool power. Operating at only 12V, the Z2-ATX-20PIN dc-dc ATX power supply delivers 120 Watts of power. PSU provides plenty of power (via ATX connector and HDD cable harness) for CPU and an entire range of peripherals.

100% Silent The Z2-ATX-20PIN mini PSU is a 100% silent fanless dc to dc solution. No fans, no noise, just power for small and silent PCs.

Z2-ATX-20PIN is a fully compliant DC-DC ATX PC PSU. It can power VIA mini-ITX boards with C3 or C7 processors, P3, P4, Pentium-M, Core Duo Mobile or Desktop versions and llow power AMD processors.

Z2-ATX-20PIN ATX DC-DC converter is very small, measuring just45mm(L)x32mm(W)x17mm(H), about the size of two AA batteries, Z2-ATX-20PIN is also 1U ServerRack compliant.
