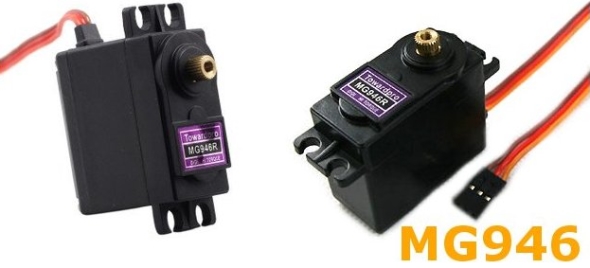

MG946R 55G Metal Gear Servo

MG946R Digital Metal Servo 13KG High torque. It is upgraded version of MG945. The new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model.

Specification

• R for ROHS specification
• Dimension : 40,7mm x 19,7mm x 42,9mm
• weight: 68g
• Operating Speed : 0.20sec / 60 degrees (4.8V no load)
• Operating Speed : 0.15sec / 60 degrees (6.0V no load)
• Stall Torque : 10.4 kg-cm at 4.8V
• Stall Torque : 13 kg-cm at 6V
• Operation Voltage : 4.8 - 6.6Volts
• Gear Type: All Metal Gears
• Connector Wire: Heavy Duty, 11.81" (300mm)
